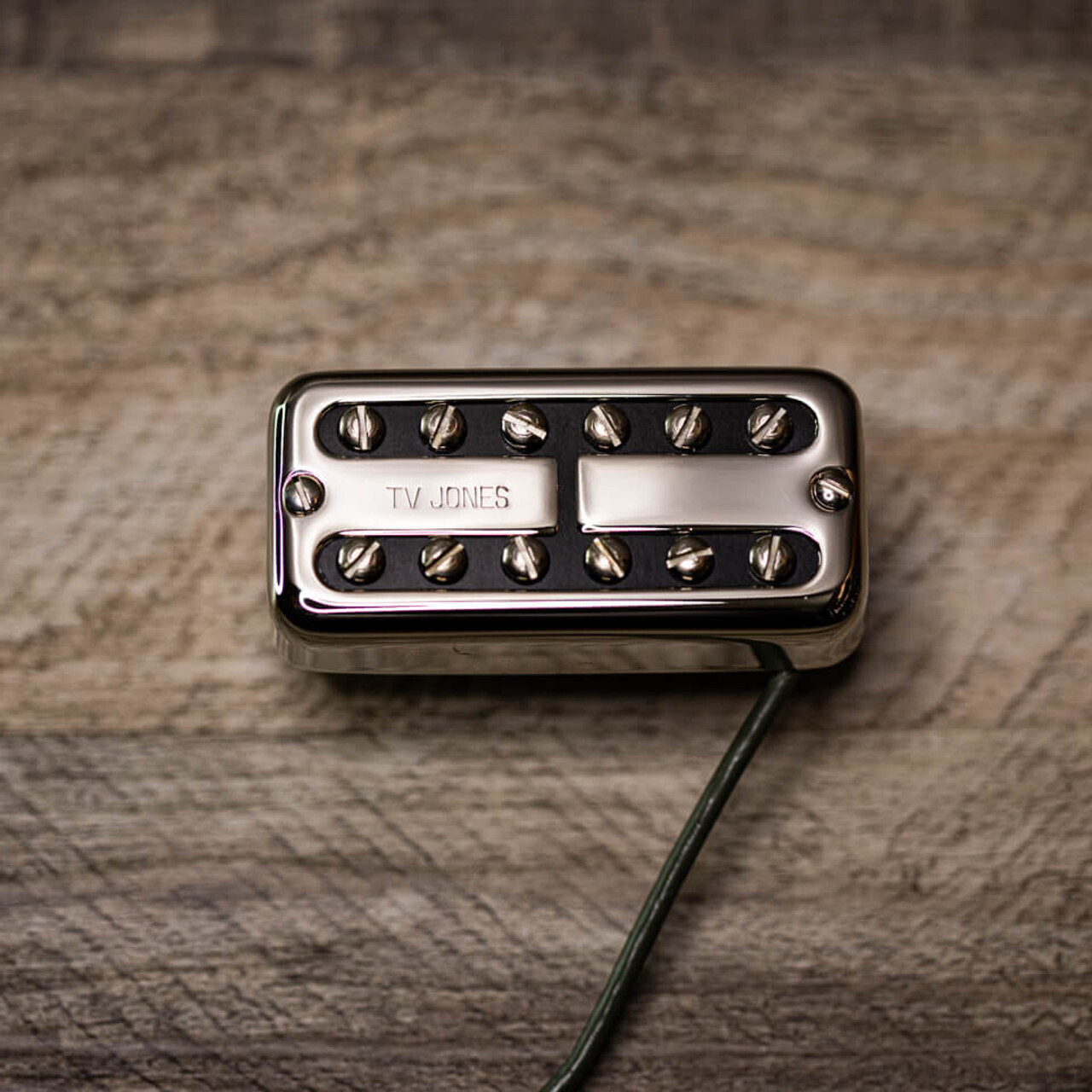

TV Classic Neck™ Pickup - Universal Mount™
The pickup that started it all - the TV Classic captures that vintage twang and growl characteristic of the late 1950's Filter'Tron. Originally designed from an analyzed 1959 "Pat. Applied For" Filter'Tron, the TV Classic is our most popular and most versatile pickup. Popularized and played by many different artists ranging from John Mayer to Brian Setzer.
Tone/Characteristics
Between a typical Fender (bright single-coil) & Gibson (darker & thick humbucker) with a unique growl when you dig in. Clean, compressed treble and mids breath life over a tight and controlled low-end.
Output/Power
DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.
Bridge: DCR - 4.8k / Inductance - 1.83H
Neck: DCR - 4.0k / Inductance - 1.4H
Installation
The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'trons - with and without "ears" or "clips". This pickup comes with two pieces of compression rubber, 2 mounting (wood) screws, and the Universal Mount Clip Pack which includes everything you will need to mount the pickups to your ring or pickguard.
